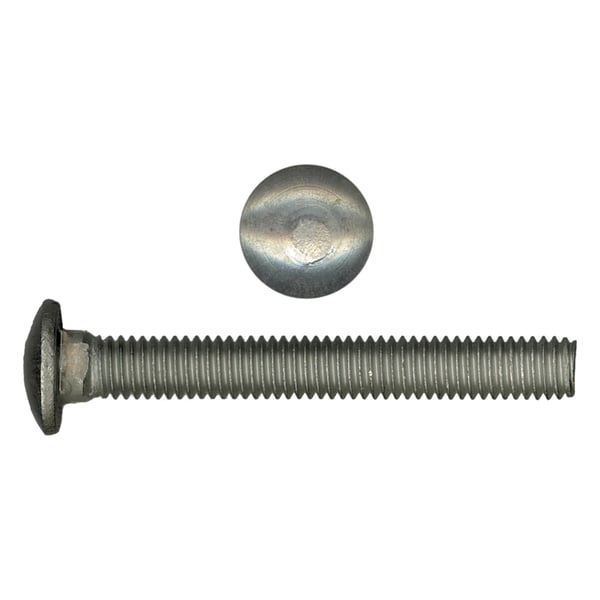

Paulin® 5002-489 Fully Threaded Carriage Bolt, 3/8-16, 1 in L Under Head, Stainless Steel, 18-8 Grade


Description

Paulin® Carriage Bolt, Fully Threaded, Series: 5002, Measurement System: Imperial, 3/8-16 Thread, 1 in Length Under Head, Stainless Steel, 18-8 Grade, Square Neck, 80000 to 150000 psi Tensile Strength, 1 in Thread Length, UNC Thread, B85 to 95 Rockwell Hardness, Material Specification: ANSI B18.5, Round Head

Specifications

Diameter - Thread Size 3/8-16
Grade 18-8
Hardness B85 to 95 Rockwell
Head Type Round
Length Under Head 1 in
Material Stainless Steel
Material Specification ANSI B18.5
Measurement System Imperial
Neck Type Square
Series 5002
Tensile Strength 80000 to 150000 psi
Thread Length 1 in
Thread Type UNC
Type Fully Threaded

Features

  • Non-magnetic, favorable corrosion resistance in comparison to other stainless alloys
  • Not hardenable with heat, higher temperatures provide greater strength
  • Most commonly used for non-magnetic stainless fasteners
