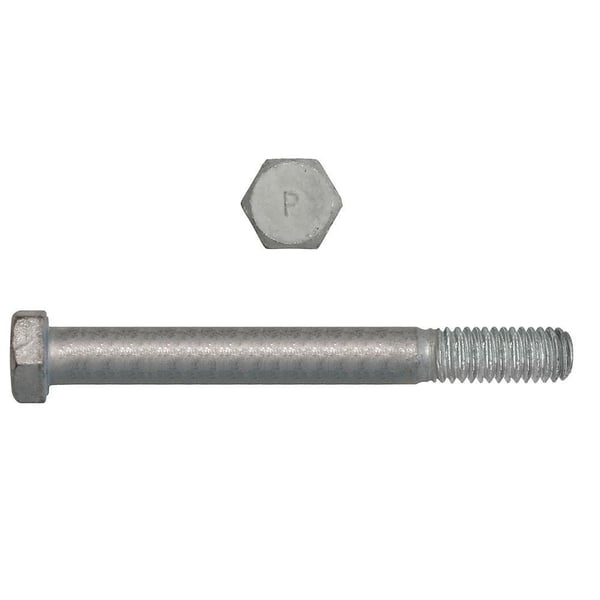

Paulin® Papco® 850-601 Partial Threaded Hex Head Cap Screw, 1/2 in, 7 in L Under Head, 2 Grade, Low Carbon Steel, Hot Dipped Galvanized


Description

Paulin® Papco® Hex Head Cap Screw, Partial Threaded, Series: 850, Measurement System: Imperial, 1/2 in Thread, 7 in Length Under Head, 2 Grade, Low Carbon Steel, Hot Dipped Galvanized, UNC Thread, 3/4 in W x 5/16 in H Head, Hex Head, 74000 psi Tensile Strength, Material Specification: ASME B18.2.1-1996, 1-1/2 in Minimum Thread Length, B80 to B100 Rockwell Hardness

Hot Dipped Galvanized Hex Head Cap Screws are designed to secure an object within or against another object. They’re used in environments requiring high corrosion resistance, like marine and outdoor landscaping, due to their galvanized plating. Suitable for non-critical, low-stress applications, these Grade 2 fasteners are made from low carbon steel without radial bar markings.

Specifications

Diameter - Thread Size 1/2 in
Finish Hot Dipped Galvanized
Grade 2
Hardness B80 to B100 Rockwell
Head Size 3/4 in W x 5/16 in H
Head Type Hex
Length Under Head 7 in
Material Low Carbon Steel
Material Specification ASME B18.2.1-1996
Measurement System Imperial
Minimum Thread Length 1-1/2 in
Series 850
Tensile Strength 74000 psi
Thread Type UNC
Type Partial Threaded

Features

  • Low or medium carbon steel, C: 0.15 to 0.55, P: 0.025 maximum, S: 0.025 maximum
  • For studs only, sulfur content may be 0.33% maximum
