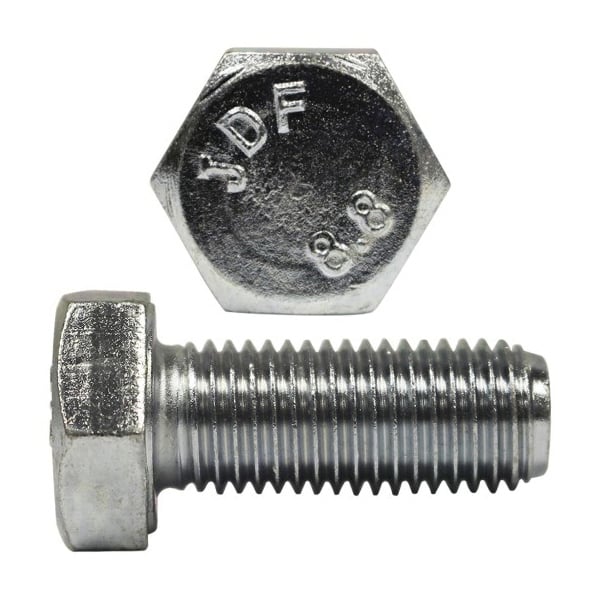

Paulin® Papco® 609-372 Fully Threaded Heat Treated Hex Head Cap Screw, M10x1.25, 40 mm L Under Head, Class 8.8 Grade, Carbon Steel, Zinc Dichromate
Paulin® Papco® 609-372 Fully Threaded Heat Treated Hex Head Cap Screw, M10x1.25, 40 mm L Under Head, Class 8.8 Grade, Carbon Steel, Zinc Dichromate
SKU: CSM609-372
Manufacturer Part Number: 609-372
UPC: 771878772848
Description
Specifications
| Diameter - Thread Size | M10x1.25 |
| Finish | Zinc Dichromate |
| Grade | Class 8.8 |
| Head Type | Hex |
| Length Under Head | 40 mm |
| Material | Carbon Steel |
| Measurement System | Metric |
| Minimum Thread Length | 40 mm |
| Series | 609 |
| Tensile Strength | 118000 psi |
| Thread Type | ISO Fine |
| Type | Fully Threaded Heat Treated |
Country of Origin: China
Standards and Approvals: DIN 961
Features
- The zinc coating applied to these bolts serves as a protective barrier against moderate corrosion resistance, making them suitable for both indoor and outdoor industrial use
- Quenched and tempered for strength and holding power Use with Class 8 nuts to develop full strength of the cap screw
- Fine threads with fully threaded or partially threaded lengths DIN 960 = Partial Thread, DIN 961 = Full Thread
