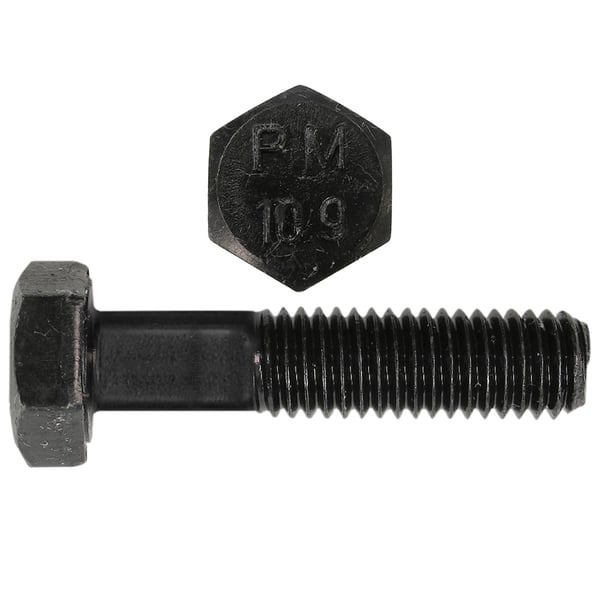

Paulin® Papco® 612-532 Heat Treated Partially Threaded Hex Head Cap Screw, M20x2.5, 120 mm L Under Head, Class 10.9 Grade, Carbon Steel, Bare Metal
Paulin® Papco® 612-532 Heat Treated Partially Threaded Hex Head Cap Screw, M20x2.5, 120 mm L Under Head, Class 10.9 Grade, Carbon Steel, Bare Metal
SKU: CSM612-532
Manufacturer Part Number: 612-532
UPC: 622412204960
Description
Specifications
| Diameter - Thread Size | M20x2.5 |
| Finish | Bare Metal |
| Grade | Class 10.9 |
| Head Size | 30 mm W x 13 mm W |
| Head Type | Hex |
| Length Under Head | 120 mm |
| Material | Carbon Steel |
| Measurement System | Metric |
| Minimum Thread Length | 46 mm |
| Series | 612 |
| Tensile Strength | 150000 psi |
| Thread Type | ISO Coarse |
| Type | Heat Treated Partially Threaded |
Country of Origin: China
Standards and Approvals: DIN 931
Features
- Made from alloy steel, quenched, and tempered These bolts undergo a heat treatment process consisting of quenching (rapid cooling from a high temperature) and tempering (reheating to a lower temperature and then cooling) to achieve their high strength and toughness Use with Class 109 nuts to develop full strength of the cap screw
- Available in Coarse, Fine threads with fully threaded or partially threaded lengths DIN 931 = Partial Thread, DIN 933 = Full Thread
- Made from alloy steel 109 bolts are suitable for applications requiring high tensile strength and load-bearing capacity, such as in automotive, machinery, and structural engineering projects
- Metric classes are numeric stamped on the head
