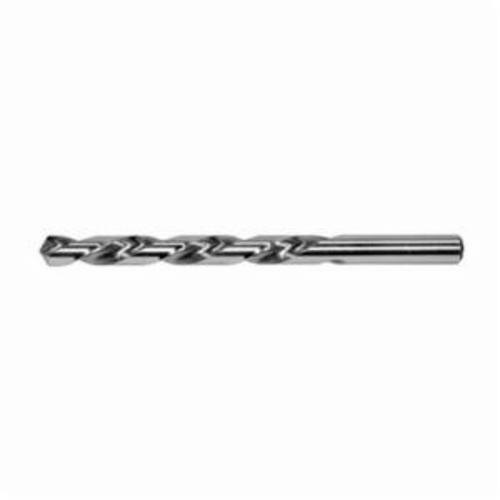

Drillco 200LH112 General Purpose Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 118 deg Point, HSS, Bright


Description

Drillco Jobber Length Drill Bit, General Purpose, Series: 200LH, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 2-5/16 in Cutting Depth, 2 Flutes, Spiral Flute, 2-5/16 in Flute Length, Straight Shank, 118 deg Point, Conventional Point, Left Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright

Specifications

Cutting Depth 2-5/16 in
Cutting Direction Left Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.1875 in
Drill Size - Fraction 3/16 in
Finish Bright
Flute Length 2-5/16 in
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 3-1/2 in
Point Angle 118 deg
Point Type Conventional
Series 200LH
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Country of Origin: United States

Application:
For drilling out broken bolts

Features

  • They are used in close center multiple spindle gear driven drilling heads, where adjacent spindles operate alternately left and right hand
  • Left handed flutes and cutting edges allow for counter-clockwise drilling
  • Jobber length for most use cases
