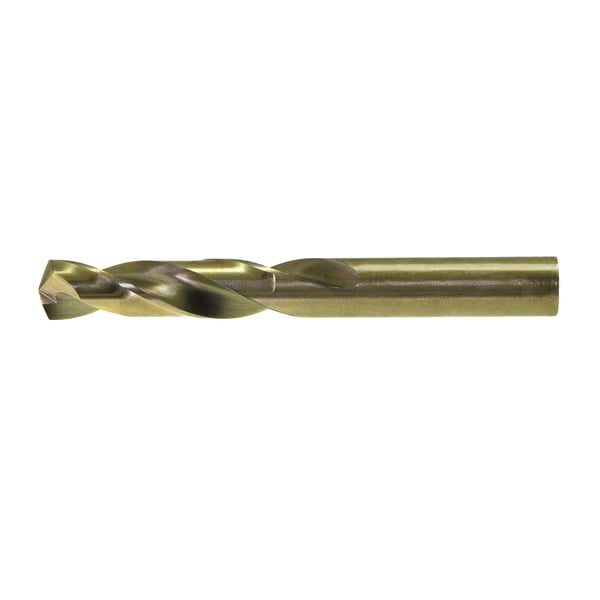

Drillco 380C011 Heavy Duty Stub Length Screw Machine Length Drill, #11 Drill - Wire, 0.0781 in Drill - Decimal Inch, Cobalt, Bronze


Description

Drillco Screw Machine Length Drill, Heavy Duty Stub Length, Series: 380C, Imperial, #11 Drill - Wire, 0.0781 in Drill - Decimal Inch, 2-1/4 in Overall Length, 1-3/16 in Cutting Depth, Spiral Flute, 1-3/16 in Flute Length, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, Cobalt Cutting Edge, Cobalt, Bronze, Applicable Materials: Stainless Steel and Titanium

Drillco's M42 cobalt drills permit speeds 30% greater than HSS drills. Screw Machine (Stub) length drills offering greater stability than longer drills. Heavy-duty design increases tool life and performance. 135° Split Point reduces walking at the point.

Specifications

Applicable Materials Stainless Steel and Titanium
Cutting Depth 1-3/16 in
Cutting Direction Right Hand
Cutting Edge Material Cobalt
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.0781 in
Drill Size - Wire #11
Finish Bronze
Flute Length 1-3/16 in
Flute Type Spiral
Material Cobalt
Overall Length 2-1/4 in
Point Angle 135 deg
Point Type Split
Series 380C
Shank Type Straight
Type Heavy Duty Stub Length

Country of Origin: United States

Standards and Approvals: PROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Application:
For use in machines and portable drilling in hard sheet

Features

  • Made with premium grade cobalt HSS to drill harder materials
  • Cobalt drills can drill approximately 30% faster than HSS drills
  • Self centering 135 deg split-point for reduced thrust requirements and minimized walking
  • Bronze surface treatment for high lubricity
  • Shorter screw machine length adds rigidity to the drill bit to reduce breakage
