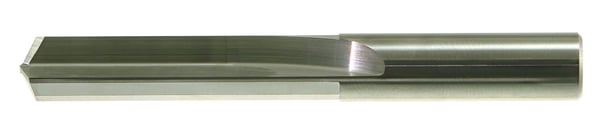

Drillco 710A124 Straight Flute Drill Bit, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 1-13/16 in D Cutting, Solid Carbide


Description

Drillco Straight Flute Drill Bit, Series: 710, Imperial, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 3-1/8 in Overall Length, 1-13/16 in Cutting Depth, Straight Flute, 1-13/16 in Flute Length, Straight Shank, 140 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Applicable Materials: Nickel Alloys, Chrome Alloys, Steel Weldments, Titanium Alloys, High Temperature Alloys and Stainless Steel Weldments, Solid Carbide, Bright

710 straight flute carbide drills increases edge strength, produces good size control, and hole surface finish. Used to drill difficult materials (up to Rc 60). Suitable for drilling out broken drills, taps, bolts, screws, studs, weldments and more!

Specifications

Applicable Materials Nickel Alloys, Chrome Alloys, Steel Weldments, Titanium Alloys, High Temperature Alloys and Stainless Steel Weldments
Cutting Depth 1-13/16 in
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.375 in
Drill Size - Fraction 3/8 in
Finish Bright
Flute Length 1-13/16 in
Flute Type Straight
Material Solid Carbide
Overall Length 3-1/8 in
Point Angle 140 deg
Point Type Split/Self-Centering
Series 710
Shank Type Straight

Country of Origin: United States

Standards and Approvals: PROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Application:
For use to drill difficult materials

Features

  • Solid carbide construction for extreme rigidity and strength
  • Carbide base material can drill up to 2x faster than HSS
  • Straight flutes increase edge strength, and produce good size control and surface finish
  • Bright finish for added lubricity
