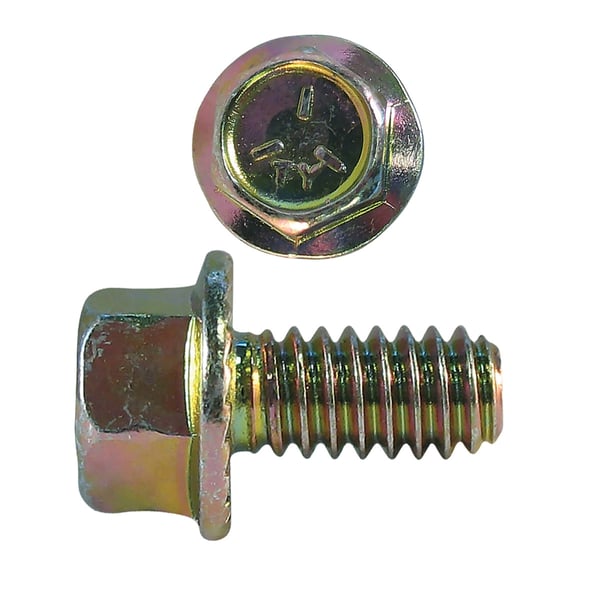

Paulin® Papco® 126-547 Fully Threaded Serrated Flange Bolt, 3/8-16, 3/4 in L Under Head, 5 Grade, Yellow Zinc Dichromate Coated


Description

Paulin® Papco® Flange Bolt, Fully Threaded Serrated, Series: 126, Measurement System: Imperial, 3/8-16 Thread, 3/4 in Length Under Head, 5 Grade, Yellow Zinc Dichromate Coated, UNC Thread, Hex Head, 12000 psi Tensile Strength, C25 to C34 Rockwell Hardness, 1 in Thread Length, Carbon Steel

Specifications

Diameter - Thread Size 3/8-16
Finish Yellow Zinc Dichromate Coated
Grade 5
Hardness C25 to C34 Rockwell
Head Type Hex
Length Under Head 3/4 in
Material Carbon Steel
Measurement System Imperial
Series 126
Tensile Strength 12000 psi
Thread Length 1 in
Thread Type UNC
Type Fully Threaded Serrated

Features

  • Medium carbon steel quenched and tempered C: 0.28 to 0.55, P: 0.025 maximum, S: 0.025 maximum
  • For studs only, sulfur content may be 0.13% maximum
  • There shall be a sufficient hardenability to ensure a microstructure consisting of approximately 90% martensite in the core of threaded sections of the fasteners after hardening and quenching and before tempering
