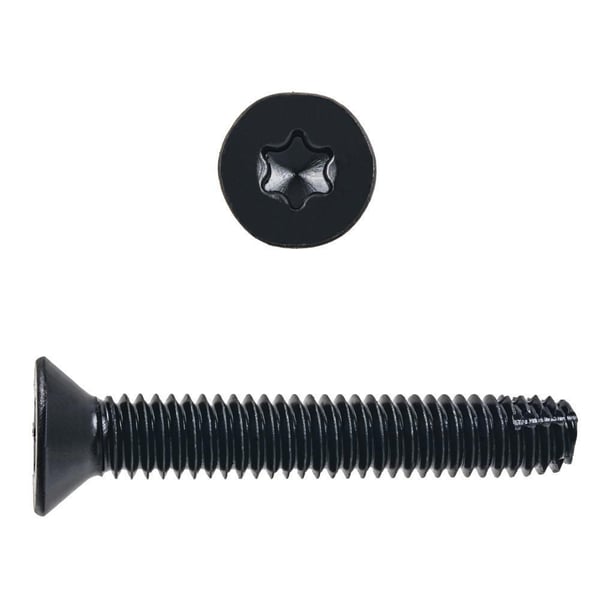

Paulin® B225-952 Floorboard Screw, 1/4-20, 1-1/2 in OAL, Steel, Phosphate and Oil


Description

Paulin® Floorboard Screw, Series: B225, Measurement System: Imperial, 1/4-20 Thread, 1-1/2 in Overall Length, Steel, Phosphate and Oil, 6-Lobe Flat Head, Tri-Lobular Point

Type F Floorboard Screws are used in applications requiring secure and reliable metal fastening, such as sheet metal work, metal fabrication, electrical enclosures, automotive assembly, and general manufacturing. These self-tapping screws are ideal for joining metal panels, trim, and structural components without pre-drilling, providing strong, durable connections in demanding environments. Thread cutting screws are designed to create new threads in existing holes. They are commonly used in applications in need of periodic maintenance involving wood, metal, or plastic. Thread cutting screws do not generate as much stress on material as thread-forming screws. Thread cutting screws feature a blunt, tapered point and cutting edges to assist with thread creation and material removal.

Specifications

Diameter - Thread Size 1/4-20
Finish Phosphate and Oil
Head Type 6-Lobe Flat
Material Steel
Measurement System Imperial
Overall Length 1-1/2 in
Point Type Tri-Lobular
Series B225
Application:
Used to fasten wood plank, laminated plywood or corrugated aluminum flooring to the supporting steel cross members of truck and trailers

Features

  • The phosphate coating provides corrosion protection and reduces friction, making it easier to install the screws and extending their lifespan, especially in indoor applications
  • Flat Head - designed to countersink and is ideal where application requires a flat smooth surface after screw installation
  • For flat head, length is measured from the top of the head
  • 6-Lobe ensures excellent torque transfer and reduces cam-out, making it easier to drive into hard materials without damage
  • Phillips adds versatility, allowing use with a common Phillips screwdriver
  • Commonly used in sheet metal work, electrical, automotive, furniture and cabinetry and general manufacturing
  • Type F threads are self-tapping screws designed for use in metal, featuring precise machine screw threads and a tapered point that facilitates the threading process
  • These screws form threads by displacing material, ensuring a strong, secure connection without the need for pre-drilling or tapping
  • Drive Bit T-30
