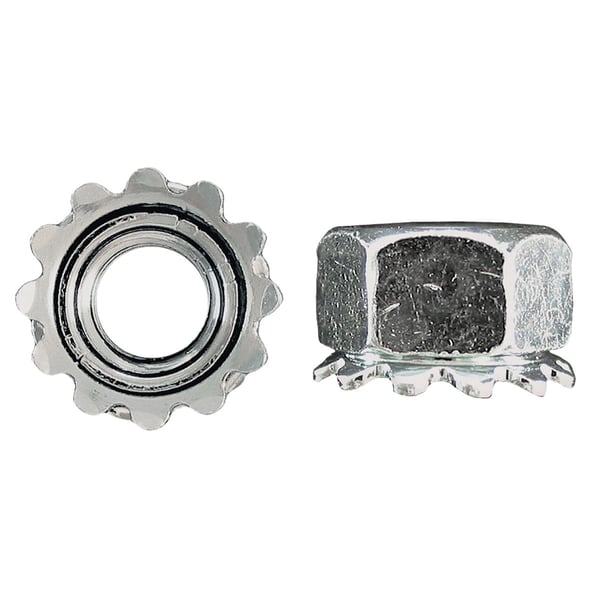

Paulin® Papco® 119-014 Keps® 119 Standard Lock Nut, 1/4-20, Carbon Steel, Zinc Plated


Description

Paulin® Papco® Lock Nut, Standard, Series: Keps® 119, Measurement System: Imperial, 1/4-20 Thread, Carbon Steel, Zinc Plated, Stop Style, 7/16 in Width Across Flats

A Keps nut, also referred to as a k-lock nut or washer nut, features a built-in, freely rotating external tooth lock washer. This configuration is designed to simplify the assembly process and enhance resistance to vibrations and loosening. When the nut is tightened, the teeth of the lock washer penetrate the bearing surface, securing the nut in place. Typically, the lock washer is a star-shaped ring with teeth that face outward, gripping the mating surface to prevent the nut from turning. Zinc plated fasteners have good corrosion resistant qualities and are a good choice for indoor, outdoor and industrial applications.

Specifications

Diameter - Thread Size 1/4-20
Finish Zinc Plated
Material Carbon Steel
Measurement System Imperial
Series Keps® 119
Style Stop
Type Standard
Width Across Flats 7/16 in

Country of Origin: Taiwan

Features

  • The tapered, twisted locking teeth provide full locking action when the nut is seated
  • Consists of a pre-assembled hexagon nut and a tooth lock washer
  • American standard machine screw sizes
