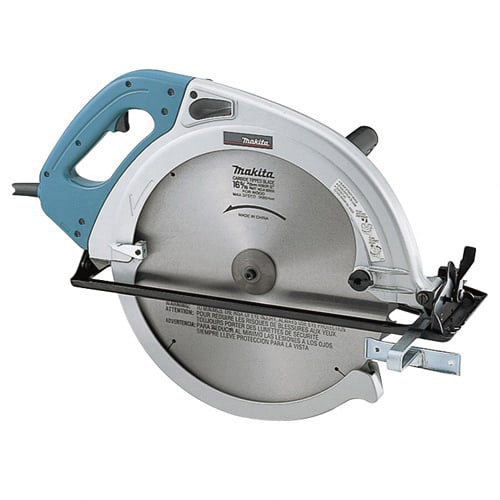

Makita® 5402NA Corded Circular Saw, 16-5/16 in Blade, 1 in Arbor/Shank, 4-3/16 in, 6-3/16 in Cutting


Description

Makita® Corded Circular Saw, Tool/Kit: Tool, 16-5/16 in Blade, 1 in, 2300 rpm, Cutting Capacity: 4-3/16 in, 6-3/16 in, 45/90 deg Cutting Angle, Bevel Capacity: 45 deg, Metal Shoe, Carbide Tip Blade, Carbide Cutting Edge, 120 V AC, 15 A, 24-1/4 in OAL

The Makita® 16-5/16 in circular saw is powered by a 15 a motor with 2300 rpm, and has a large cutting capacity to handle beams, timber, and large pressure treated lumber. it will cut 6X material at 90 deg and 4X material at 45 deg in a single pass. the 5402NA features a shaft lock for quick blade changes, a large depth control lever for secure adjustments, and an oversized trigger handle for added convenience. other features include lower noise (only 87 dB), and a blade stabilizer for consistent blade rotation includes a carbide tipped blade.

Specifications

Amperage Rating 15 A
Arbor/Shank Size 1 in
Bevel Capacity 45 deg
Blade Material Carbide Tip
Blade Size 16-5/16 in
Cutting Angle 45/90 deg
Cutting Capacity 4-3/16 in, 6-3/16 in
Cutting Edge Material Carbide
Dimensions 24-1/4 in OAL
Shoe Material Metal
Speed 2300 rpm
Tool/Kit Bare Tool
Voltage Rating 120 V AC

Includes: A-90956 16-5/16 x 1 in 32T Carbide-Tipped Blade, 783204-6 Wrench, 164019-4 Rip Fence, 194701-1 Saw Storage Holder

Country of Origin: United States

Standards and Approvals: OSHA Compliant, UL Listed

Application:
For cutting large timber, pressure treated lumber and wood logs

Features

  • Powerful motor delivers 1800 W max out
  • Rugged steel base for maximum stability
  • Electric brake for maximum productivity
  • Blade stabilizer for stable blade rotation and superior cutting performance
  • Large depth control lever for convenience and secure adjustments
  • Powerful 15 A motor delivers 2300 rpm for enough power to cut through pressure treated lumber
  • Cuts 6X material at 90 deg and 4X material at 45 deg in a single pass
  • Weighs only 32.1 lb for increased operator comfort
  • Large capacity blade cuts 6-3/16 in at 90 deg and 4-3/16 in at 45 deg
  • Low noise level at only 87 dB for quieter operation
  • Large support handle for increased operator comfort and control
