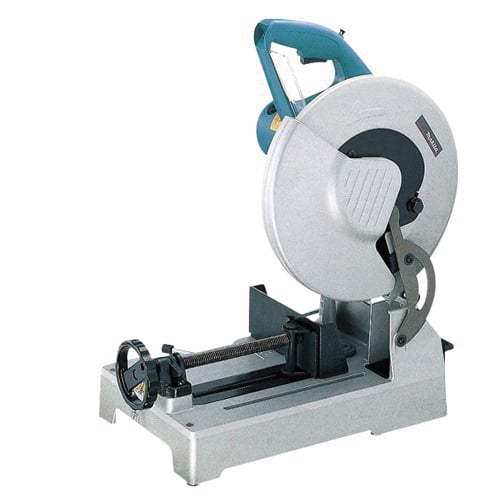

Makita® LC1230 Corded Metal Cutting Saw, 12 in Blade, 1 in Arbor/Shank, 3-1/2 in, 4-1/2 in Cutting


Description

Makita® Metal Cutting Saw, Corded, Tool/Kit: Tool, 12 in Blade, Carbide Tipped Blade, 1 in, 1300 rpm, Cutting Capacity: 3-1/2 in, 4-1/2 in, 45/90 deg Cutting Angle, 120 V AC, 15 A, D-Handle, Switch Button Control, 20-1/4 in OAL

The LC1230 is powered by a Makita® built 15 a motor that delivers 1300 rpm for improved performance. The quick release "tool-less" guide plate adjusts from 0 to 45 deg for quick and easy miter cutting. Cutting capacities range from 4-1/2 in at 90 deg to 3-1/2 in at 45 de. Ease of use features for improved Performance. Ease of use features include a quick release vise for secure material retention and fast repeated cut-offs, a socket wrench that stores on the base for convenient blade changes, and a shavings collection tray for easy waste disposal and a cleaner work environment. The LC1230 has a D-shaped handle with a 2-finger trigger and a lock-off button engineered to prevent accidental start-ups. The saw includes a carbide tipped blade that lasts 50X longer than abrasive wheels and is engineered to cut clean, accurate and virtually burr-free.

Specifications

Amperage Rating 15 A
Arbor/Shank Size 1 in
Blade Size 12 in
Blade Type Carbide Tipped
Control Type Switch Button
Cutting Angle 45/90 deg
Cutting Capacity 3-1/2 in, 4-1/2 in
Dimensions 20-1/4 in OAL
Handle Type D-Handle
Speed 1300 rpm
Tool/Kit Bare Tool
Type Corded
Voltage Rating 120 V AC

Includes: A-90532 12 in (60T) Carbide-Tipped Metal Cutting Blade Metal, 782210-8 Socket Wrench and 191686-2 Safety Goggles

Country of Origin: China

Features

  • Quick release vise for secure material retention and fast, repeated cut-offs
  • Lock-off button for user convenience
  • Spark Guard for operators safety
  • Tool-less guide plate adjustments
  • Cast aluminum base for lighter weight portability
  • Externally accessible carbon brush
  • Quick release support fence adjusts 0 to 45 deg for miter cutting
  • Shaft lock for easy blade changes with just one wrench
  • Powerful 15 A motor for the most demanding applications
  • 4X faster cutting in light pipe, angle iron, tubing, conduit and channel than abrasive cut-off saws
  • D-shape handle for user comfort
  • Socket wrench stores on base for convenient blade changes
  • Shavings collection tray for easy waste disposal and a cleaner work environment
  • Large cast aluminum base for stability
  • Externally accessible brushes for greater serviceability
  • Maximum cutting depth of 4-1/2 in with carbide tipped blade
  • Carbide tipped blade lasts 50X longer than abrasive wheels, cuts clean, accurate and virtually burr-free
