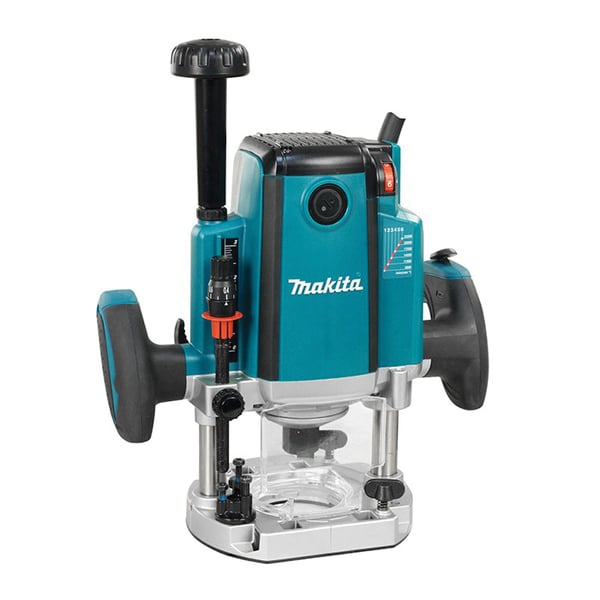

Makita® Makita® RP2301FC Plunge Router, Trigger Switch, 1/4 in, 1/2 in Chuck, 9000 to 22000 rpm Speed, 3-1/4 hp, 120 VAC, 0 to 2-3/4 in D Plunge


Description

Makita® Plunge Router, Tool/Kit: Tool, 1/4 in, 1/2 in Chuck, 9000 to 22000 rpm, 3-1/4 hp, 120 VAC, 15 A, Labyrinth Housing, Ergonomic/Rubberized, Trigger Switch, 0 to 2-3/4 in Plunge Depth, 12-1/4 in L

The Makita® 3-1/4 hp plunge router with variable speed (RP2301FC) delivers powerful precision with smooth plunge action and superior performance, with added features including variable speed, electronic speed control and an electric brake. The RP2301FC is engineered with 15 A power, ease of use features and an increased plunge capacity for a wide range of applications including fine woodworking, cabinetry, windows, doors and more. 15 A power and 22000 rpm for smooth routing. The RP2301FC features a 15 A motor with variable speed from 9000 to 22000 rpm and electronic speed control to maintain constant speed under load. The RP2301FC has a soft start feature for smooth start ups and an electric brake for increased productivity. It has a 0 to 2-3/4 in plunge depth capacity for easy penetration into the work piece, with linear ball bearings for smooth plunge action. The RP2301FC is engineered with oversized ball bearing construction as well as a built-in fan with labyrinth construction to minimize dust from entering the tool for longer tool life. Ease of use features the RP2301FC has ergonomic rubberized handles with a built-in 2-finger switch for added control, with a lock-on trigger for continuous operation and built-in twin LED lights that illuminate the work area for increased visibility. The quick release plunge depth adjustment with micro control and 3-preset depth stops are engineered for added precision and the plunge lock lever is conveniently located for efficient operation. The RP2301FC is equipped with a shaft lock for quick and easy bit changes and the "toolless" template guide system provides quick and easy installation and removal. Additional ease of use features include easy to read depth scales, a chip deflector engineered to direct chips away from the operator and a durable flat top design for stability when changing bits. The RP2301FC uses 1/4 and 1/2 in shank router bits and is engineered for fine wood working, cabinetry, furniture making, counter tops, decking, windows and doors and general carpentry. It is ideal for professional woodworkers, furniture makers, professional craftsmen, cabinet makers, deck builders, boat builders and general contractors seeking a best in class 3-1/4 hp plunge router.

Specifications

Amperage Rating 15 A
Chuck Size 1/4 in, 1/2 in
Dimensions 12-1/4 in L
Handle Type Ergonomic/Rubberized
Horsepower 3-1/4 hp
Housing Material Labyrinth
Plunge Depth 0 to 2-3/4 in
Speed 9000 to 22000 rpm
Switch Type Trigger
Tool/Kit Bare Tool
Voltage Rating 120 VAC

Includes: (1) 763622-4 1/2 in Collet, (1) 763803-0 1/4 in Collet, (1) 158980-5 Extend Depth Adjustment Knob and (1) 781030-7 Spanner Wrench

Country of Origin: Japan

Application:
For furniture making, counter tops, decking, windows, doors, general carpentry, fine wood working, cabinetry and more

Features

  • Electronic speed control maintains constant speed under load
  • Linear ball bearings for smooth plunge action and superior performance
  • Larger ball bearings on armature enhance durability of tool
  • Labyrinth Retainers and Fan prevent contamination of motor
  • Plunge depth can be adjusted from the bottom of the router when mounted in a router table
  • Trigger Switch with Lock-on/off Button located on handle for operator convenience
  • Three-Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
  • Four raised ribs on top of motor housing provide a stable platform during bit changes
  • Dual LED job lights with afterglow
  • Sub-Base accepts industry standard template guides
  • Soft start feature for smooth start ups
  • Electric brake for increased productivity
  • Variable speed control dial enables user to match the speed to the application
  • Quick release plunge depth adjustment with micro control along with 3-preset depth stops for added precision
  • Built-in twin LED lights illuminate the work area for increased visibility
  • Oversized ball bearing construction for longer tool life
  • Ergonomic rubberized handles with built-in large two-finger switch for added control and use
  • Conveniently located plunge lock lever for efficient operation
  • Shaft lock for quick and easy bit changes
  • Toolless template guide system for quick and easy installation and removal
