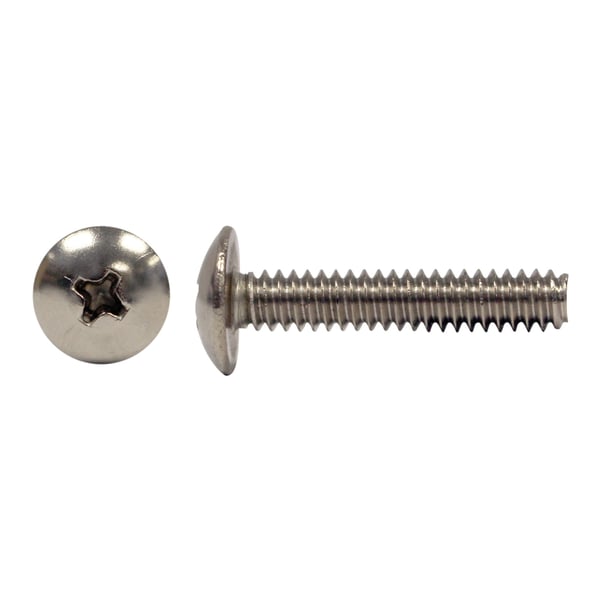

Paulin® 5115-313 Machine Screw, 1/4-20, 1-1/2 in OAL, 18-8 Stainless Steel, Truss Head, Phillips® Drive


Description

Paulin® Machine Screw, Series: 5115, Measurement System: Imperial, 1/4-20 Thread, 1-1/2 in Overall Length, 18-8 Stainless Steel, Truss Head, Phillips® Drive, 0.573 in Dia x 0.15 in H Head, B85 to 95 Rockwell Hardness

Machine Screws are fully threaded screws designed to be used with nuts and washers of the same finish to fasten metal to metal, metal to wood and other types of materials. These screws are ideal fasteners for applications that may require future disassembly. They are also ideal where secure clamping of the materials is required. Zinc plating provides moderate corrosion resistance. Machine Screws are available in zinc plated steel, solid brass, stainless steel or nylon, in inch or metric sizes and in Round, Flat and Oval Heads with Slot, Phillips, or Square Drives. Selected sizes of machines screws are available with hex nuts and are known as Stove Bolts.

Specifications

Diameter - Thread Size 1/4-20
Drive Type Phillips®
Hardness B85 to 95 Rockwell
Head Size 0.573 in Dia x 0.15 in H
Head Type Truss
Material 18-8 Stainless Steel
Measurement System Imperial
Overall Length 1-1/2 in
Series 5115

Standards and Approvals: ANSI B18.6.3-1972, ASME B18.6.3-2003

Features

  • Non-magnetic, favorable corrosion resistance in comparison to other stainless alloys
  • Not hardenable with heat, higher temperatures provide greater strength
  • Most commonly used for non-magnetic stainless fasteners
