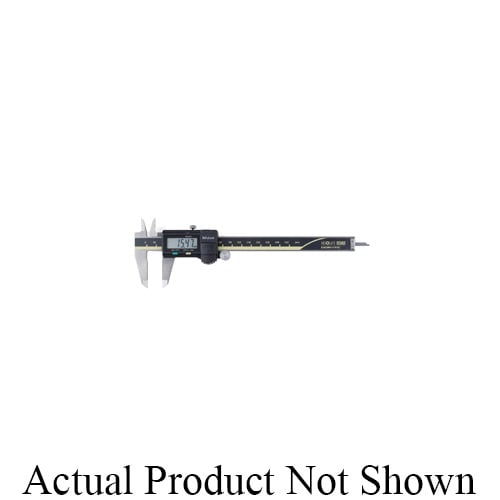

Mitutoyo ABSOLUTE® 500-195-30 Coolant Proof Digimatic Caliper With Thumb Roller, Absolute™ Encode Technology, Without SPC Data Output, 0 to 4 in, Graduations 0.0005 in, 40 mm D Jaw


Description

Mitutoyo ABSOLUTE® Digimatic Caliper, Coolant Proof, Series: 500, 0 to 4 in, +/-0.001 in Accuracy, Graduations: 0.0005 in, 40 mm Jaw Depth, Measuring System: Imperial/Metric

Mitutoyo's ABSOLUTE® digimatic caliper is the next generation of electronic calipers. It keeps track of its origin point once set. Whenever turned on, the large LCD displays the actual slider position ready to start measurement. No more repeated zero-setting is necessary with the ABSOLUTE® encoder technology, as well as no more concern for over speed errors.

Specifications

Accuracy +/-0.001 in
Graduations 0.0005 in
Jaw Depth 40 mm
Measuring Range 0 to 4 in
Measuring System Imperial/Metric
Series 500
Type Coolant Proof

Country of Origin: Japan

Features

  • Large and clear LCD readout
  • The zero/ABS key allow the display to be zero-set at any slider position along the scale for incremental comparison measurements
  • This switch will also allow return to the ABSOLUTE® (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point)
  • Supplied in fitted plastic case
  • SR44 battery
  • Origin-set, zero-setting, data output, in/mm conversion function
  • Alarm - low voltage, counting value composition error
  • 0.075 in round depth bar
