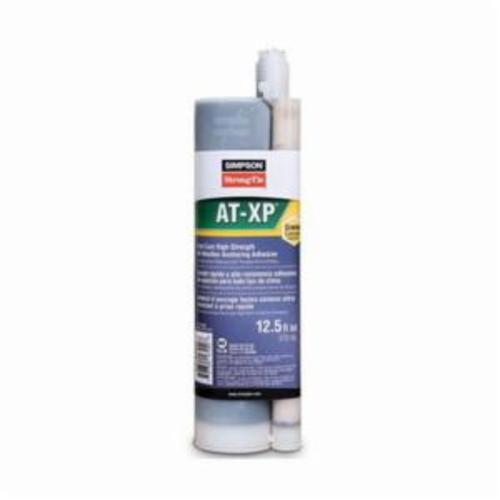

Simpson Strong-Tie® Simpson Strong-Tie® Strong-Rod™ AT-XP13 AT-XP® High Strength Acrylic Adhesive, 12.5 oz Side-By-Side Cartridge, Liquid/Paste Form, Teal/Tan/White, 1.58


Description

Simpson Strong-Tie® Strong-Rod™ Acrylic Adhesive, High Strength, Series: AT-XP®, Side-By-Side Cartridge Container, 12.5 oz Container, Acrylic Glass Base, Composition: (Resin Teal Side)-Portland Cement, Calcined Clay, Ethoxylated Bisphenol-A Dimethacrylate, Propylidynetimethyl Trimethyl Trimethacrylate, Crystalline Silica, Quartz, Tetrahydrofurfuryl Methacrylate, (Initiator White or Tan Side)-Dibenzoyl Peroxide, White Mineral Oil, Titanium Dioxide, Kaolin, Silicon Dioxide, Liquid/Paste Form, 24 hr Curing, Teal/Tan/White, 1.58 Specific Gravity, >200/159 deg F Flash Point, 0.4173611111 Mixing Ratio, 30 g/L VOC, Applicable Materials: Grouted Concrete Block, Cracked Concrete, Dry/Water Saturated Concrete and Masonry

Formulated for high-strength anchorage of threaded rod and rebar into cracked and uncracked concrete and masonry under a wide range of conditions, AT-XP® adhesive dispenses easily in cold or warm environments and in below-freezing temperatures with no need to warm the cartridge. When mixed properly, this low-odor formula is a dark teal color for easy post-installation identification.

Specifications

Applicable Materials Grouted Concrete Block, Cracked Concrete, Dry/Water Saturated Concrete and Masonry
Base Type Acrylic Glass
Color Teal/Tan/White
Composition (Resin Teal Side)-Portland Cement, Calcined Clay, Ethoxylated Bisphenol-A Dimethacrylate, Propylidynetimethyl Trimethyl Trimethacrylate, Crystalline Silica, Quartz, Tetrahydrofurfuryl Methacrylate, (Initiator White or Tan Side)-Dibenzoyl Peroxide, White Mineral Oil, Titanium Dioxide, Kaolin, Silicon Dioxide
Container Size 12.5 oz
Container Type Side-By-Side Cartridge
Curing Time 24 hr
Flash Point >200/159 deg F
Form Liquid/Paste
Mixing Ratio 0.4173611111
Series AT-XP®
Specific Gravity 1.58
Type High Strength
VOC Content 30 g/L

Country of Origin: United States

Application:
For use under static and seismic loading conditions in cracked and uncracked concrete as well as masonry

Features

  • Passed the demanding ICC-ES AC308 adverse-condition tests pertaining to reduced and elevated temperatures and long-term sustained loads
  • Code listed under the IBC/IRC for cracked and uncracked concrete per IAPMO UES ER-263 and City of L.A. RR25960
  • Code listed under the IBC/IRC for masonry per IAPMO UES ER-281 and City of L.A. RR25966
  • 10:1 two-component high strength, acrylic-based anchoring adhesive
  • Easy hole cleaning procedure no power-brushing required
  • For best results store between 14 to 80 deg F
  • Cures in substrate temperatures as low as 14 deg F in 24 hrs or less
  • Threaded rod anchoring and rebar doweling into concrete and masonry
  • Suitable for horizontal, vertical and overhead applications
  • Surfaces to receive adhesive must be clean
  • Base material temperature must be 14 deg F or above at the time of installation
  • For best results, material should be 14 to 80 deg F at time of application
  • To warm cold material, store cartridges in a warm, uniformly heated area or storage container
  • Do not immerse cartridges in water to facilitate warming
  • Mixed material in nozzle can harden in 3 to 4 min at temperatures of 70 deg F and above
  • Use only Simpson Strong-Tie® mixing nozzles in accordance with Simpson Strong-Tie® instructions
  • Modification or improper use of mixing nozzle may impair AT-XP® adhesive performance
  • 12 months shelf life from date of manufacture in unopened container
  • Compatible with ADT813S dispensing tool/AMN19Q mixing nozzle
