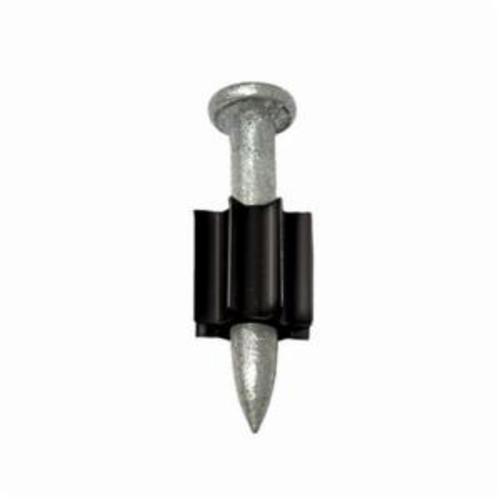

Simpson Strong-Tie® PDPA-100 Drive Pin, 0.157 in Dia x 1 in L Shank, 0.3 in Head


Description

Simpson Strong-Tie® Drive Pin, Series: PDPA, 1 in Shank Length, 0.3 in Head Dia, 0.157 in Shank Dia, For Use With: PTP-27L, PTP-27S, PT-27, PT-27HDA, PT-22A, PT-22GS, PT-22P and PT-22HA Powder Actuated Tools, Steel Fastener, Galvanized, Material Fastened To: Concrete, Concrete Filled Deck and Masonry

The PDPA series of powder actuated fasteners feature 0.3 in dia heads and a 0.157 in dia shank. Available in a variety of finishes and styles, these pins are compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

Specifications

Fastener Material Steel
Finish Galvanized
Head Diameter 0.3 in
Material Fastened To Concrete, Concrete Filled Deck and Masonry
Series PDPA
Shank Diameter 0.157 in
Shank Length 1 in
Suitable For Use With PTP-27L, PTP-27S, PT-27, PT-27HDA, PT-22A, PT-22GS, PT-22P and PT-22HA Powder Actuated Tools

Country of Origin: China

Standards and Approvals: ASTM B695, Class 5, Type1, ICC-ES ESR-2138

Features

  • Manufactured with tight tolerances for superior performance
  • Smooth shank
  • 0.354 in L maximum point
  • Compatible with 721, D-60, U-2000 and most other low velocity tools
  • 53 to 56 Rockwell "C" core hardness
