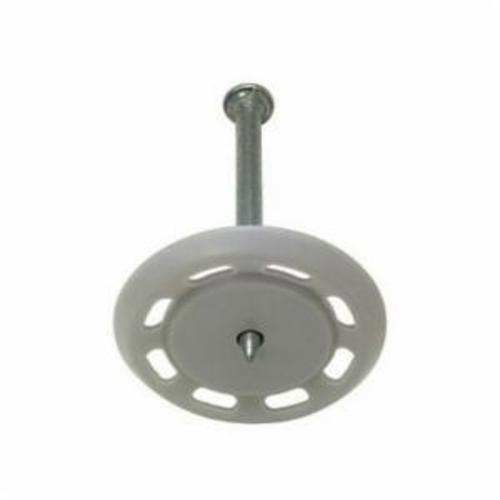

Simpson Strong-Tie® PINWP-250W Insulated Low Velocity Drive Pin With White Plastic Washer, 0.145 in Dia x 2-1/2 in L Shank, 0.3 in Head


Description

Simpson Strong-Tie® Drive Pin, Insulated Low Velocity, Series: PINWP, 2-1/2 in Shank Length, 0.3 in Head Dia, 0.145 in Shank Dia, 1-3/8 in Washer Dia, For Use With: PTP-27L, PT-27, PT-22P, PT-22A, PT-22GS and PT-22HA Powder Actuated Tools, Steel Fastener, Galvanized, Material Fastened To: Concrete, Concrete Filled Deck, Masonry and Steel

The PDP series of powder-actuated fasteners feature 0.3 in dia heads and a 0.145 in dia shank. Available in a variety of finishes and styles, these pins are compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

Specifications

Fastener Material Steel
Finish Galvanized
Head Diameter 0.3 in
Material Fastened To Concrete, Concrete Filled Deck, Masonry and Steel
Series PINWP
Shank Diameter 0.145 in
Shank Length 2-1/2 in
Suitable For Use With PTP-27L, PT-27, PT-22P, PT-22A, PT-22GS and PT-22HA Powder Actuated Tools
Type Insulated Low Velocity
Washer Diameter 1-3/8 in

Standards and Approvals: ICC-ES ESR-2138

Features

  • Compatible with 721, D-60, U-2000, system 1, system 3 and most other low velocity tools
  • 0.125 in THK washer
  • 0.354 in L maximum point
  • 51 to 56 Rockwell "C" core hardness
