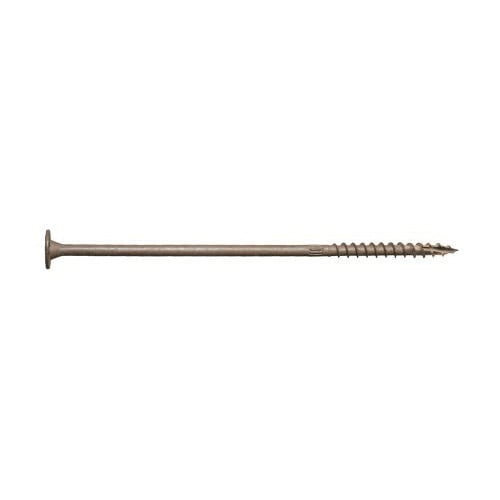

Simpson Strong-Tie® Strong-Drive® SDWS22800-R50 Log Screw, 8 in OAL, Low Profile Head, T40 6-Lobe Drive, E-Coat® Electrocoated


Description

Simpson Strong-Tie® Strong-Drive® Log Screw, Series: SDWS, Measurement System: Imperial, 8 in Overall Length, Low Profile Head, T40 6-Lobe Drive, E-Coat® Electrocoated, 3/4 in Dia Head, SawTooth™ Point, Serrated Thread, 2-3/4 in Thread Length, 0.22 in Shoulder Diameter, Black

The Strong-Drive® SDWS Log screw is a structural screw available in longer lengths and is designed for log-home construction and general interior applications. These 0.220 in and 0.195 in diameter structural fasteners require less torque to install than comparable fasteners. The large diameter head pulls logs down easily, eliminating the need to use extra washers. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.

Specifications

Color Black
Drive Type T40 6-Lobe
Finish E-Coat® Electrocoated
Head Size 3/4 in Dia
Head Type Low Profile
Measurement System Imperial
Overall Length 8 in
Point Type SawTooth™
Series SDWS
Shoulder Diameter 0.22 in
Thread Length 2-3/4 in
Thread Type Serrated

Includes: Replacement Driver Bit

Warranty: Limited

Standards and Approvals: 2015 and 2018 IRC®/IBC® Code, City of Los Angeles RR25952, IAPMO-UES ER-192

Application:
For Log Home Construction and General Interior Applications

Features

  • SawTooth™ point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Low-profile head design makes countersinking easy (0.75 in Dia head)
  • Serrated thread reduces log splitting and damage
  • Large washer head with nibs provides maximum bearing area
  • 6-lobe, T40 drive provides positive engagement that makes the screw easy to drive and improves bit life
  • Size identification on all SDWS screw heads
