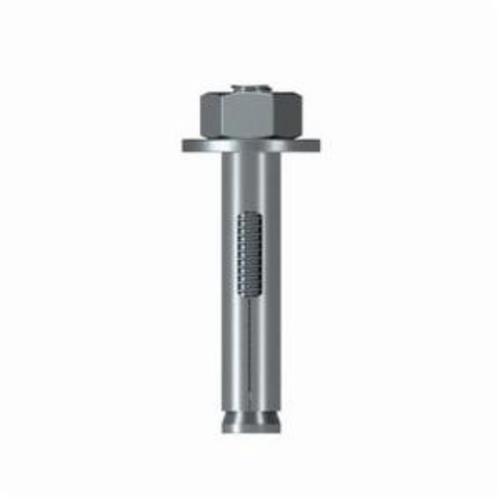

Simpson Strong-Tie® SL37178H Sleeve-All® Pre-Assembled Expanding Sleeve Anchor, 3/8 in Dia, 5/16-18 Thread, Carbon Steel, Hex Head, Hex Drive


Description

Simpson Strong-Tie® Sleeve Anchor, Pre-Assembled Expanding, Series: Sleeve-All®, 3/8 in Diameter, 5/16-18 Thread, Carbon Steel, Hex Head, Hex Drive, Zinc Plated, 1-1/2 in Minimum Embedment Depth, 1-7/8 in Overall Length, 3/4 in Dia x 15/64 in H Head, 3/8 in Drill, 770 lb at 2000 psi Shear Strength, 400 lb at 2000 psi Tensile Strength

Sleeve-All® expanding anchors are pre-assembled, expanding sleeve anchors for use in all types of solid base materials. This anchor is available in acorn, hex, rod coupler, flat or round head style for a wide range of applications.

Specifications

Diameter 3/8 in
Drill Size 3/8 in
Drive Type Hex
Finish Zinc Plated
Head Size 3/4 in Dia x 15/64 in H
Head Type Hex
Material Carbon Steel
Minimum Embedment Depth 1-1/2 in
Overall Length 1-7/8 in
Series Sleeve-All®
Shear Strength 770 lb at 2000 psi
Tensile Strength 400 lb at 2000 psi
Thread Size 5/16-18
Type Pre-Assembled Expanding

Standards and Approvals: OSHA 29 CFR 1910.1200, Federal Specification A-A-1922A, Factory Mutual 3017082, 3026805, 3029959, 3043442, Underwriters Laboratories File Ex3605

Application:
For use in all types of solid base materials

Features

  • 3/8 in THK maximum fixture
  • Material meets minimum 50000 psi tensile anchor body
  • SAE J403, grade 1008 cold rolled steel sleeve
  • Commercial grade nut, meets requirements of ASTM A563 grade A
  • SAE J403, grade 1008/1010 cold rolled steel washer
  • 3-3/4 in critical edge distance
  • 6 in critical spacing distance
  • 1600 lb at 2000 psi ultimate tension load for concrete
  • 2680 lb at 4000 psi ultimate tension load for concrete
  • 3080 lb at 2000 psi ultimate shear load for concrete
  • 15 ft-lb install torque
  • 670 lb at 4000 psi for concrete
