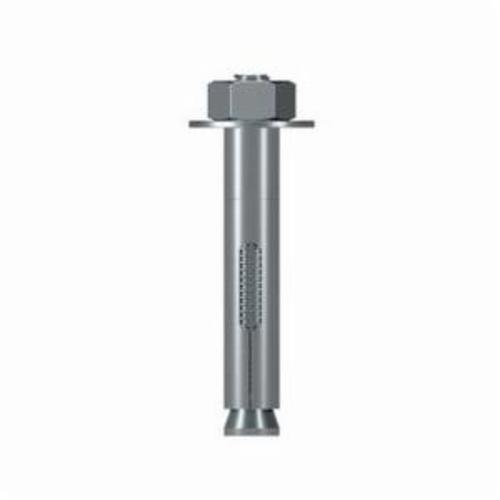

Simpson Strong-Tie® SL50300H Sleeve-All® Pre-Assembled Expanding Sleeve Anchor, 1/2 in Dia, 3/8-16 Thread, Carbon Steel, Hex Head, Hex Drive


Description

Simpson Strong-Tie® Sleeve Anchor, Pre-Assembled Expanding, Series: Sleeve-All®, 1/2 in Diameter, 3/8-16 Thread, Carbon Steel, Hex Head, Hex Drive, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 3 in Overall Length, 7/8 in Dia x 1/4 in H Head, 1/2 in Drill, 1250 lb at 2000 psi Shear Strength, 790 lb at 2000 psi Tensile Strength

Sleeve-All® expanding anchors are pre-assembled, expanding sleeve anchors for use in all types of solid base materials. This anchor is available in acorn, hex, rod coupler, flat or round head style for a wide range of applications.

Specifications

Diameter 1/2 in
Drill Size 1/2 in
Drive Type Hex
Finish Zinc Plated
Head Size 7/8 in Dia x 1/4 in H
Head Type Hex
Material Carbon Steel
Minimum Embedment Depth 2-1/4 in
Overall Length 3 in
Series Sleeve-All®
Shear Strength 1250 lb at 2000 psi
Tensile Strength 790 lb at 2000 psi
Thread Size 3/8-16
Type Pre-Assembled Expanding

Standards and Approvals: OSHA 29 CFR 1910.1200, Federal Specification A-A-1922A

Application:
For use in all types of solid base materials

Features

  • 3/4 in THK maximum fixture
  • Material meets minimum 50000 psi tensile anchor body
  • SAE J403, grade 1008 cold rolled steel sleeve
  • Commercial grade nut, meets requirements of ASTM A563 grade A
  • SAE J403, grade 1008/1010 cold rolled steel washer
  • 5 in critical edge distance
  • 9 in critical spacing distance
  • 3160 lb at 2000 psi ultimate tension load for concrete
  • 4760 lb at 4000 psi ultimate tension load for concrete
  • 5000 lb at 2000 psi ultimate shear load for concrete
  • 25 ft-lb install torque
  • 1190 lb at 4000 psi for concrete
