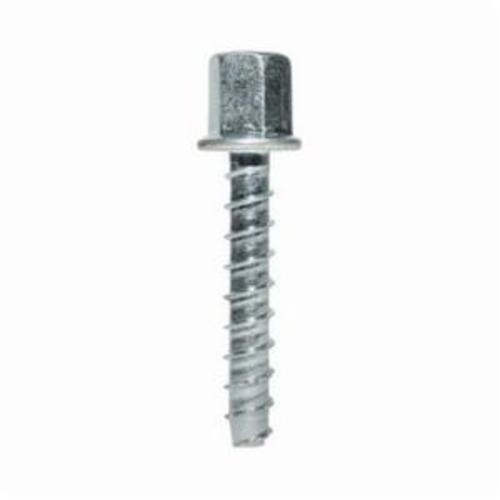

Simpson Strong-Tie® THD50234RH Titen HD® Threaded Rod Hanger, 1/2 in Dia, 2-3/4 in OAL, Carbon Steel, Zinc Plated


Description

Simpson Strong-Tie® Rod Hanger, Threaded, Series: Titen HD®, 1/2 in Diameter, 2-3/4 in Overall Length, Carbon Steel, 11/16 in Head, 2-3/4 in Minimum Embedment Depth, 4-1/4 in Maximum Work Thickness, 1075 lb at 2000 psi/1550 lb at 4000 psi for Concrete Tensile Strength, Zinc Plated

The Titen HD® threaded rod hanger is a high-strength screw anchor designed to suspend threaded rod from concrete slabs and beams or concrete over metal in order to hang pipes, cable trays and HVAC equipment. The anchor offers low installation torque with no secondary setting, and has been tested to offer industry-leading performance in cracked and uncracked concrete - even in seismic loading conditions.

Specifications

Diameter 1/2 in
Finish Zinc Plated
Head Size 11/16 in
Material Carbon Steel
Maximum Work Thickness 4-1/4 in
Minimum Embedment Depth 2-3/4 in
Overall Length 2-3/4 in
Series Titen HD®
Tensile Strength 1075 lb at 2000 psi/1550 lb at 4000 psi for Concrete
Type Threaded

Standards and Approvals: FM Approved, Factory Mutual 3031136

Features

  • Thread design undercuts to efficiently transfer the load to the base material
  • Serrated cutting teeth and patented thread design enable quick and easy installation
  • Specialized heat treating process creates tip hardness to facilitate cutting while the anchor body remains ductile
  • Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits - no special tools required
  • Installs with standard-sized sockets
  • Accepts 1/2 in Dia rod
  • The THD50234RH and THD37212RH are code listed for cracked and uncracked concrete applications under the 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713, Florida Statewide product Approval FL15730.7, City of Los Angeles RR25741, Factory Mutual 3031136
  • 3 in critical edge distance
  • 50 ft-lb maximum installation torque
  • 150 ft-lb maximum impact wrench torque rating
  • 3-1/4 in D minimum hole
  • 1-3/4 in minimum edge distance
  • 97000 psi yield strength
  • 4297 lb at 2000 psi/6204 lb at 4000 psi ultimate tension load for concrete
