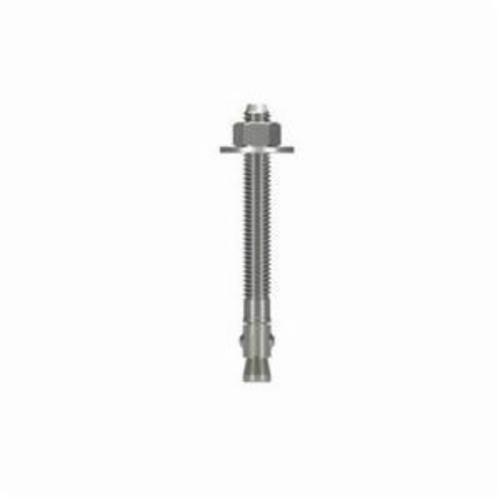

Simpson Strong-Tie® Simpson Strong-Tie® WA373346SS Wedge-All® Wedge Anchor, 3/8 in Dia, 3-3/4 in OAL, 2-5/8 in L Thread, 316 Stainless Steel


Description

Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 3/8 in Dia, 3-3/4 in Overall Length, 2-5/8 in Thread Length, 316 Stainless Steel, 1-3/4 in Minimum Embedment Depth, 3/8 in Drill, 9/16 in Head, 96 lb Shear Strength, 500 lb Tensile

A non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All® wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as Types 303/304 and Type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All is code listed for grout-filled masonry applications.

Specifications

Diameter 3/8 in
Drill Size 3/8 in
Head Size 9/16 in
Material 316 Stainless Steel
Minimum Embedment Depth 1-3/4 in
Overall Length 3-3/4 in
Series Wedge-All®
Shear Strength 96 lb
Tensile Strength 500 lb
Thread Length 2-5/8 in

Standards and Approvals: Federal Specification A-A-1923A, Type 4, FM 3017082, 3031136, 3043442, Florida FL15730.8, UL File Ex3605

Application:
For exterior environment, high level of corrosion resistance, resistant to chlorides, sulfuric acid compounds and direct contact with salt water

Features

  • Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is chamfered for ease of starting nut
  • 316 stainless steel nut/washer/clip
  • The minimum concrete thickness is 1-1/2 times the embedment depth
  • The allowable loads are based on a safety factor of 4
  • 7/16 in minimum fixture hole
  • 30 ft-lb installation torque
  • 2280 lb ultimate and 570 lb allowable shear strength
  • 350 lb at 2000 psi anf 600 lb at 4000 psi allowable tension load
