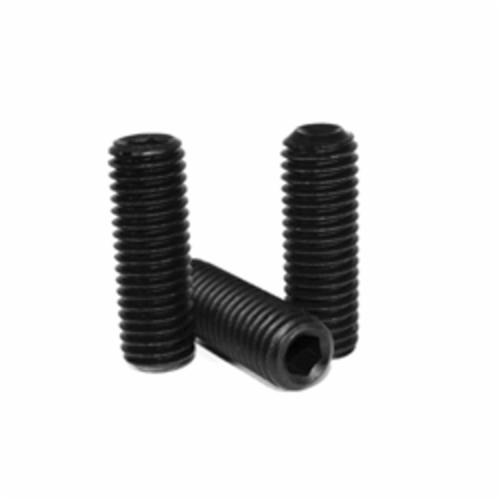

BBI 101275 Socket Set Screw, #10-32, 5/16 in L, Cup Point, Alloy Steel


Description

BBI Socket Set Screw, Measurement System: Imperial, #10-32 Thread, 5/16 in Length, Cup Point, Alloy Steel, Plain/Thermal Black Oxide, Hex Drive, UNF Thread, 0.102 in Point, 45-53 HRC Hardness, 3/32 in Drive

Specifications

Diameter - Thread Size #10-32
Drive Size 3/32 in
Drive Type Hex
Finish Plain/Thermal Black Oxide
Hardness 45-53 HRC
Length 5/16 in
Material Alloy Steel
Measurement System Imperial
Point Size 0.102 in
Point Type Cup
Thread Type UNF

Standards and Approvals: ANSI/ASME B18.3-2002, ASTM F912, BS 2470 Class Fit 3A

Application:
Usedtofastenshaftcollars,gearsorknobstoshafts

Features

  • Used against hardened shaft or where frequent adjustment are needed and where no locking point is required
