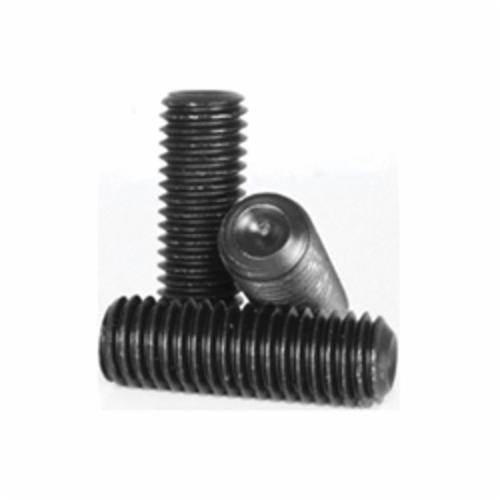

BBI 601084 Semi-Standard Socket Set Screw, #4-40, 3/32 in L, Cup Point, Alloy Steel


Description

BBI Socket Set Screw, Semi-Standard, Measurement System: Imperial, #4-40 Thread, 3/32 in Length, Cup Point, Alloy Steel, Plain/Thermal Black Oxide, Hex Drive, UNC Thread, 0.061 in Point, 45-53 HRC Hardness, 0.05 in Drive

Specifications

Diameter - Thread Size #4-40
Drive Size 0.05 in
Drive Type Hex
Finish Plain/Thermal Black Oxide
Hardness 45-53 HRC
Length 3/32 in
Material Alloy Steel
Measurement System Imperial
Point Size 0.061 in
Point Type Cup
Thread Type UNC
Type Semi-Standard

Standards and Approvals: ANSI/ASME B18.3-2002, BS 2470 Class Fit 3A

Application:
Usedtofastenshaftcollars,gearsorknobstoshafts

Features

  • Used against hardened shaft or where frequent adjustment are needed and where no locking point is required
