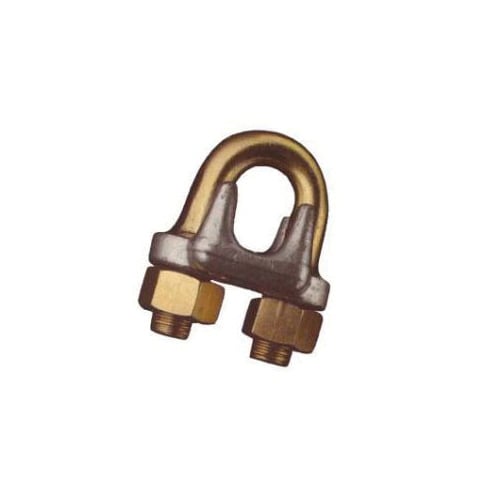

VGD VGD 2907 0040 Golden U-Bolt® Wire Rope Clip, 5/8 in Cable, Forged Steel, 3 Clips, 12 in Rope Turn Back


Description

VGD Wire Rope Clip, Series: Golden U-Bolt®, 5/8 in Cable, Forged Steel, 3 Clips Minimum, 12 in Rope Turn Back, 95 ft-lb Minimum, Hot Dipped Galvanized

Specifications

Cable Size 5/8 in
Finish Hot Dipped Galvanized
Material Forged Steel
Minimum Number of Clips 3
Minimum Torque 95 ft-lb
Rope Turn Back 12 in
Series Golden U-Bolt®

Standards and Approvals: Federal Specification FF-C-450/Type 1/Class 1, ASME B30.26

Features

  • Forged saddle, hot dipped galvanized, permanently embossed with VGD, size and forged
  • Gold chromated U-bolts and nuts identify Vanguard Steel Ltd product
  • Torque tested threads
  • The tightening torque values shown are based upon the threads being clean, dry and free of lubrication
  • Eye terminations reaching 80% of the rope strength when properly installed
