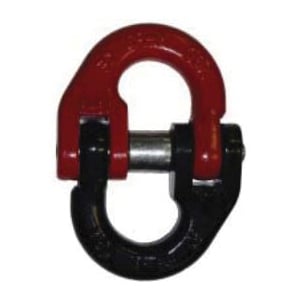

VGD VGD 3956 00161 V-Line Coupling Link, 9/32 in Trade, 3500 lb Load, 80 Grade, Alloy Steel
VGD VGD 3956 00161 V-Line Coupling Link, 9/32 in Trade, 3500 lb Load, 80 Grade, Alloy Steel
SKU: VAN395600161
Manufacturer Part Number: 3956 00161
Brand: VGD
Description
Specifications
| Grade | 80 |
| Load Capacity | 3500 lb |
| Material | Alloy Steel |
| Series | V-Line |
| Trade Size | 9/32 in |
Standards and Approvals: ASTM A-952-96, CE Certified, EN1677
Features
- Alloy steel - quenched and tempered
- Permanently embossed with VGD, size, model number and trace code
- Approved for overhead lifting, when all components are grade 80
- Fast and easy assembly without the need for special tools
- Designed for attaching hooks, master links/sub-assemblies and other end fittings to grade 80 alloy chain
- Proof tested to 2.5 times the working load limit (WLL)
- Design factor 4:1
