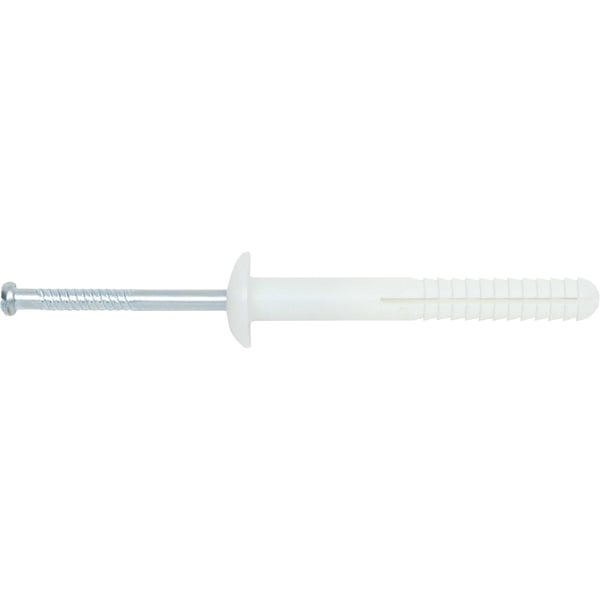

DeWALT® Nylon Nailin® 02543-PWR Pin Anchor, 1/4 in Dia, 1-1/2 in OAL, Carbon Steel Pin, Mushroom Head


Description

DeWALT® Nylon Nailin® Pin Anchor, 1/4 in Diameter, 1-1/2 in Overall Length, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 5/8 in Minimum Embedment Depth, 9/16 in W x 1/8 in H Head

The Nylon Nailin® is a nail drive anchor with a body formed from engineered plastic and drive nails available in carbon and stainless steel. The anchor can be used in concrete, block, brick or stone. The anchor is pre-assembled with either a carbon steel or stainless steel nail. This anchor is not recommended for overhead, life safety or sustained tensile loading applications.

Specifications

Diameter 1/4 in
Drill Size 1/4 in
Head Size 9/16 in W x 1/8 in H
Head Type Mushroom
Minimum Embedment Depth 5/8 in
Overall Length 1-1/2 in
Pin Material Carbon Steel

Country of Origin: Taiwan

Standards and Approvals: Federal GSA Specifications

Application:
Brick Ties and Masonry Anchorage, Electrical Fixtures, Copper Flashing, Furring Strips, Maintenance and Aluminum Frames

Features

  • Installs in a variety of base materials
  • General purpose anchoring
