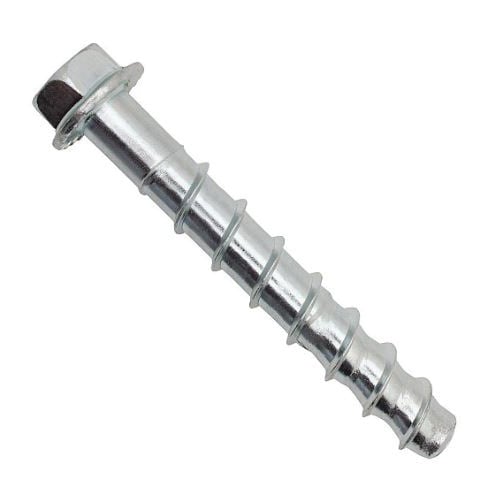

DeWALT® Screw-Bolt+™ PFM1411640 High Performance Screw Anchor, 5/8 in Dia, 6 in OAL, Hex Head Drive, Steel, 2-1/2 in D Min Embedment


Description

DeWALT® Screw-Bolt+™ Screw Anchor, High Performance, 5/8 in Diameter, 6 in Overall Length, Hex Head Drive, Steel, 2-1/2 in Minimum Embedment Depth, 5/8 in Drill, Zinc Plated, Applicable Materials: Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick, 15/16 in Head, 3-1/2 in Maximum Work Thickness, 10615/11630/13425/16445/17170 lb Shear Strength, 5735/6285/7255/8885 lb Tensile Strength

The Screw-Bolt+™ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ finish is available in bright zinc plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.

Specifications

Applicable Materials Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick
Diameter 5/8 in
Drill Size 5/8 in
Finish Zinc Plated
Head Drive Type Hex
Head Size 15/16 in
Material Steel
Maximum Work Thickness 3-1/2 in
Minimum Embedment Depth 2-1/2 in
Overall Length 6 in
Shear Strength 10615/11630/13425/16445/17170 lb
Tensile Strength 5735/6285/7255/8885 lb
Type High Performance

Country of Origin: Taiwan

Standards and Approvals: ICC-ES ESR-3889, ICC-ES ESR-4042, 2015 IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, 2009 IRC, ACI 355.2, ICC-ES AC193

Application:
Racking, Shelving and Material Handling, Support Ledgers and Sill Plate Attachments, Temporary Attachments, Glazing and Window Attachments, Retrofits, Repairs and Maintenance, Fencing and Railing, Seismic and Wind Applications

Features

  • Designed for standard ANSI tolerance drill bits
  • Tough threads for tapping high strength concrete
  • Can be installed closer to the edge than traditional expansion anchors
  • Fast installation with powered impact wrench
  • 1-piece, finished head design
  • Patented thread design offers low installation torque
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Fully removable and re-installable in same hole
  • Diameter, length and identifying marking stamped on head of each anchor
  • 10615/11630/13425/16445/17170 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
  • 5735/6285/7255/8885/8885 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength
