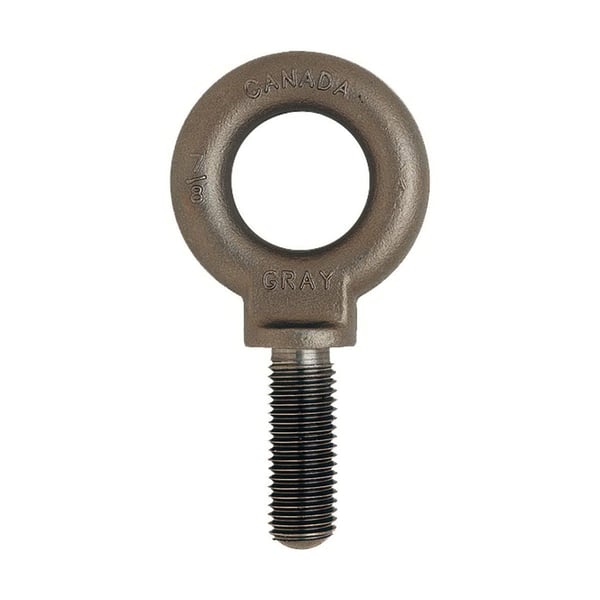

Gray Tools BS28 Self-Colored Shoulder Pattern Eye Bolt, 7/8-9, 2-1/4 in L Shank, Forged Carbon Steel, Uncoated
Gray Tools BS28 Self-Colored Shoulder Pattern Eye Bolt, 7/8-9, 2-1/4 in L Shank, Forged Carbon Steel, Uncoated
SKU: GRYBS28
Manufacturer Part Number: BS28
UPC: 067965003323
Brand: Gray Tools
Description
Specifications
| Diameter - Thread Size | 7/8-9 |
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 1-11/16 in |
| Material | Forged Carbon Steel |
| Measurement System | Imperial |
| Outside Eye Diameter | 3-3/16 in |
| Overall Length | 5-31/32 in |
| Shank Length | 2-1/4 in |
| Tensile Strength | 65000 psi |
| Thread Length | 2-1/4 in |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
Standards and Approvals: CSA Approved
Features
- Rated capacity: 10,600 lbs.
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Never apply loads greater than rated capacity to any eyebolt
