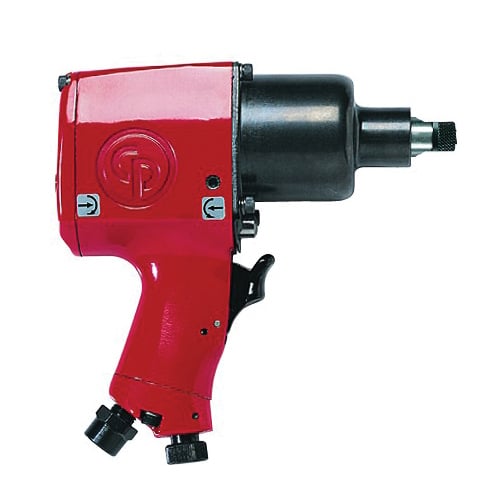

Chicago Pneumatic 6151909542 Impact Wrench, 1/2 in Drive, 34 to 434 N-m Forward/ 610 N-m Reverse Torque, 13 cfm Air Flow, 6.6 in OAL


Description

Chicago Pneumatic Impact Wrench, Tool/Kit: Bare Tool, Square Drive, 1/2 in Drive, 1100 bpm, 34 to 434 N-m Forward/ 610 N-m Reverse, 8900 rpm, 13 cfm, 90 psi Air, 1/4 in Air Inlet, Aluminum/Steel Housing, Pistol Grip, 100 dBA Power/89 dBA Pressure, 6.6 in Overall Length

The CP9541/42/61 series of 3/4 Inch, 1 Inch impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4 Inch CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.

Specifications

Air Flow Rate 13 cfm
Air Inlet 1/4 in
Air Pressure 90 psi
Blows per Minute 1100 bpm
Drive Size 1/2 in
Drive Type Square
Handle Type Pistol Grip
Housing Material Aluminum/Steel
Overall Length 6.6 in
Sound Level 100 dBA Power/89 dBA Pressure
Speed 8900 rpm
Tool/Kit Bare Tool
Torque Rating 34 to 434 N-m Forward/ 610 N-m Reverse

Country of Origin: Japan

Standards and Approvals: ISO-28927-2, PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Application:
For hard joint applications

Features

  • Industrial maintenance and production
  • Low vibration and noise level increase operator comfort
  • Reliable pin clutch in oil bath and durable clutch housing
  • 1/2 in impact wrench with pin socket retainer
  • Fast and reliable pin clutch with oil bath
  • Torque regulator at the handle
  • Steel trigger for harsh environment
